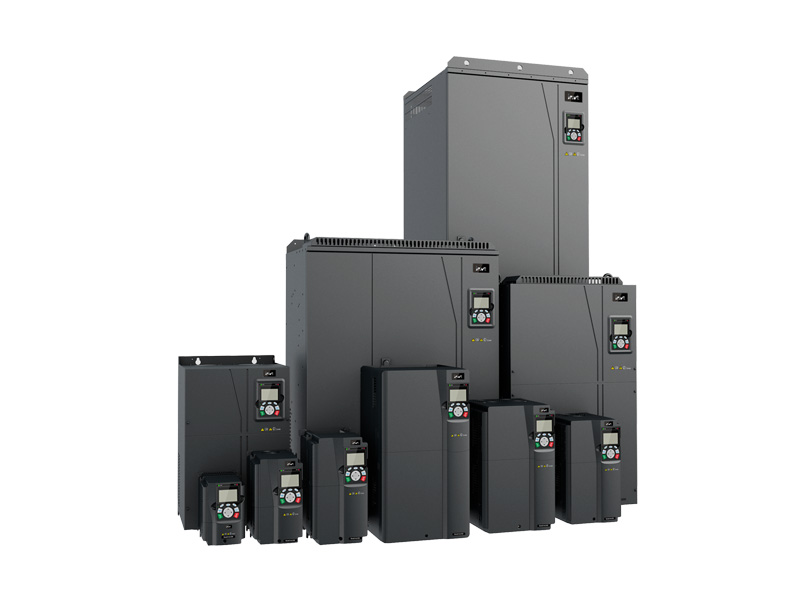

Goodrive350 series high performance multifunctional frequency converter
Goodrive350 is a high-performance multi-functional frequency converter, which adopts Ti motor control special processor and standard multi-functional LCD keyboard. It integrates the drive control of asynchronous motor and permanent magnet synchronous motor, and integrates the control of speed, torque and position; At the same time, it has strong expansion ability to flexibly and quickly meet the personalized needs of customers.
1. All drive all-round
It integrates position, speed and torque control, and supports various motor drives
2. New synchronous motor V / F control mode
hxc实验室研究所-hxcpp研究所实验室免费-hxc实验室研究所免费-hxcpp实验室入口-hxcpp实验室研究所入口-hxcpp研究所实验室-实验室研究所网页入口It is insensitive to motor parameters, the control performance does not depend on the back EMF coefficient, the output current automatically adapts to the load, and the oscillation suppression algorithm can effectively control the current stability under any working condition
3. Enhance the expansion performance and support the simultaneous use of multiple expansion cards to meet complex applications
hxc实验室研究所-hxcpp研究所实验室免费-hxc实验室研究所免费-hxcpp实验室入口-hxcpp实验室研究所入口-hxcpp研究所实验室-实验室研究所网页入口4. Support secondary development, improve equipment technology, reduce cost and enhance customer application flexibility
5. Support a variety of mainstream communications
Modbus communication is standard, and can, CANopen, PROFIBUS-DP, PROFINET, Ethernet, etc. are optional
6. It supports a variety of mainstream encoders and adopts digital filtering technology. The anti-interference ability is doubled and the closed-loop control is more stable
Optional PG card, support incremental, rotary, sine cosine and other encoders
7. Support simple closed loop, suitable for simple closed loop applications
hxc实验室研究所-hxcpp研究所实验室免费-hxc实验室研究所免费-hxcpp实验室入口-hxcpp实验室研究所入口-hxcpp研究所实验室-实验室研究所网页入口Support orthogonal encoder input and provide customers with cost-effective closed-loop application scheme
hxc实验室研究所-hxcpp研究所实验室免费-hxc实验室研究所免费-hxcpp实验室入口-hxcpp实验室研究所入口-hxcpp研究所实验室-实验室研究所网页入口8. Support mobile app operation, convenient debugging
9. Built in DC reactor, higher power factor
18kw ~ 110KW standard equipped with built-in DC reactor
10. The larger power range supports the built-in braking unit
Standard built-in: 1.5kw ~ 37KW
Optional built-in: 45kw-110kw
11. 380V voltage grade products are equipped with built-in C3 filter as standard to reduce the external installation volume
hxc实验室研究所-hxcpp研究所实验室免费-hxc实验室研究所免费-hxcpp实验室入口-hxcpp实验室研究所入口-hxcpp研究所实验室-实验室研究所网页入口12. Optimizing motor parameter self-learning
Asynchronous motor - effectively remove the skin effect of the motor and improve the accuracy of self-learning parameters
Synchronous motor - back EMF self-learning, effectively avoiding the influence of the initial value of back EMF
13. Standard multi-functional LCD keyboard, humanized design, emphasizing user experience
hxc实验室研究所-hxcpp研究所实验室免费-hxc实验室研究所免费-hxcpp实验室入口-hxcpp实验室研究所入口-hxcpp研究所实验室-实验室研究所网页入口(1) Beautiful and concise visual interface, customers can switch display interfaces of different styles according to their own preferences
hxc实验室研究所-hxcpp研究所实验室免费-hxc实验室研究所免费-hxcpp实验室入口-hxcpp实验室研究所入口-hxcpp研究所实验室-实验室研究所网页入口(2) Powerful real-time monitoring and alarm function, user-defined monitoring and debugging parameters, real-time clock function, real-time fault recording, 6 groups of historical faults can be queried, which is convenient for maintenance
hxc实验室研究所-hxcpp研究所实验室免费-hxc实验室研究所免费-hxcpp实验室入口-hxcpp实验室研究所入口-hxcpp研究所实验室-实验室研究所网页入口(3) It supports 3 sets of frequency converter parameter upload and download, and the operation storage area can be renamed to facilitate user backup of parameters
(4) Fast editing and debugging function, you can select fast setting and grouping channel setting parameters to meet different customer needs respectively
(5) Power on guidance - humanized guidance editing function, Chinese and English language switching, meeting most user groups
