Hekang vector high voltage inverter HIVERT-Y (T) VF has standard products of 6kV and 10kV levels, and other non-standard voltage level products can also be customized according to user requirements.

hxc实验室研究所-hxcpp研究所实验室免费-hxc实验室研究所免费-hxcpp实验室入口-hxcpp实验室研究所入口-hxcpp研究所实验室-实验室研究所网页入口HIVERT-Y (T) VF series high-power high-voltage frequency converter is a high-voltage AC synchronous and asynchronous motor speed regulating driving device independently developed and produced by Beijing Hekang Yisheng Frequency Conversion Technology Co., Ltd. The frequency converter adopts advanced power unit series superposition technology, vector control technology, active inverter energy feedback technology and novel all Chinese operation interface, with high reliability, superior performance and simple operation. The utility model can be applied to occasions requiring four quadrant operation, with energy feedback, fast dynamic response, large low-speed operation torque, etc.

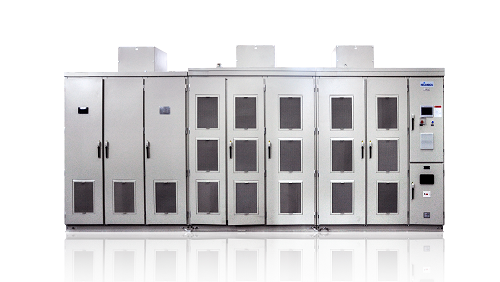

Hekang vector high voltage inverter HIVERT-Y (T) VF

hxc实验室研究所-hxcpp研究所实验室免费-hxc实验室研究所免费-hxcpp实验室入口-hxcpp实验室研究所入口-hxcpp研究所实验室-实验室研究所网页入口Perfect output performance:

Unit series pulse width modulation superimposed wave output, 6 units per phase of 6kV series, greatly weakens the output harmonic content, and the output waveform is almost perfect sine wave. Compared with other forms of high-voltage and large capacity frequency converters, it has the following advantages

hxc实验室研究所-hxcpp研究所实验室免费-hxc实验室研究所免费-hxcpp实验室入口-hxcpp实验室研究所入口-hxcpp研究所实验室-实验室研究所网页入口No input and output filtering devices are required;

hxc实验室研究所-hxcpp研究所实验室免费-hxc实验室研究所免费-hxcpp实验室入口-hxcpp实验室研究所入口-hxcpp研究所实验室-实验室研究所网页入口It can drive ordinary high-voltage same and different motors without increasing the motor temperature rise;

hxc实验室研究所-hxcpp研究所实验室免费-hxc实验室研究所免费-hxcpp实验室入口-hxcpp实验室研究所入口-hxcpp研究所实验室-实验室研究所网页入口The motor cable has no length limit within the allowable range of voltage drop;

hxc实验室研究所-hxcpp研究所实验室免费-hxc实验室研究所免费-hxcpp实验室入口-hxcpp实验室研究所入口-hxcpp研究所实验室-实验室研究所网页入口The insulation of main circuit motor and cable can be protected from DV / dt stress;

No pulsating torque caused by harmonic, which can prolong the service life of motor and mechanical equipment;

hxc实验室研究所-hxcpp研究所实验室免费-hxc实验室研究所免费-hxcpp实验室入口-hxcpp实验室研究所入口-hxcpp研究所实验室-实验室研究所网页入口The motor does not need to be derated due to harmonics
